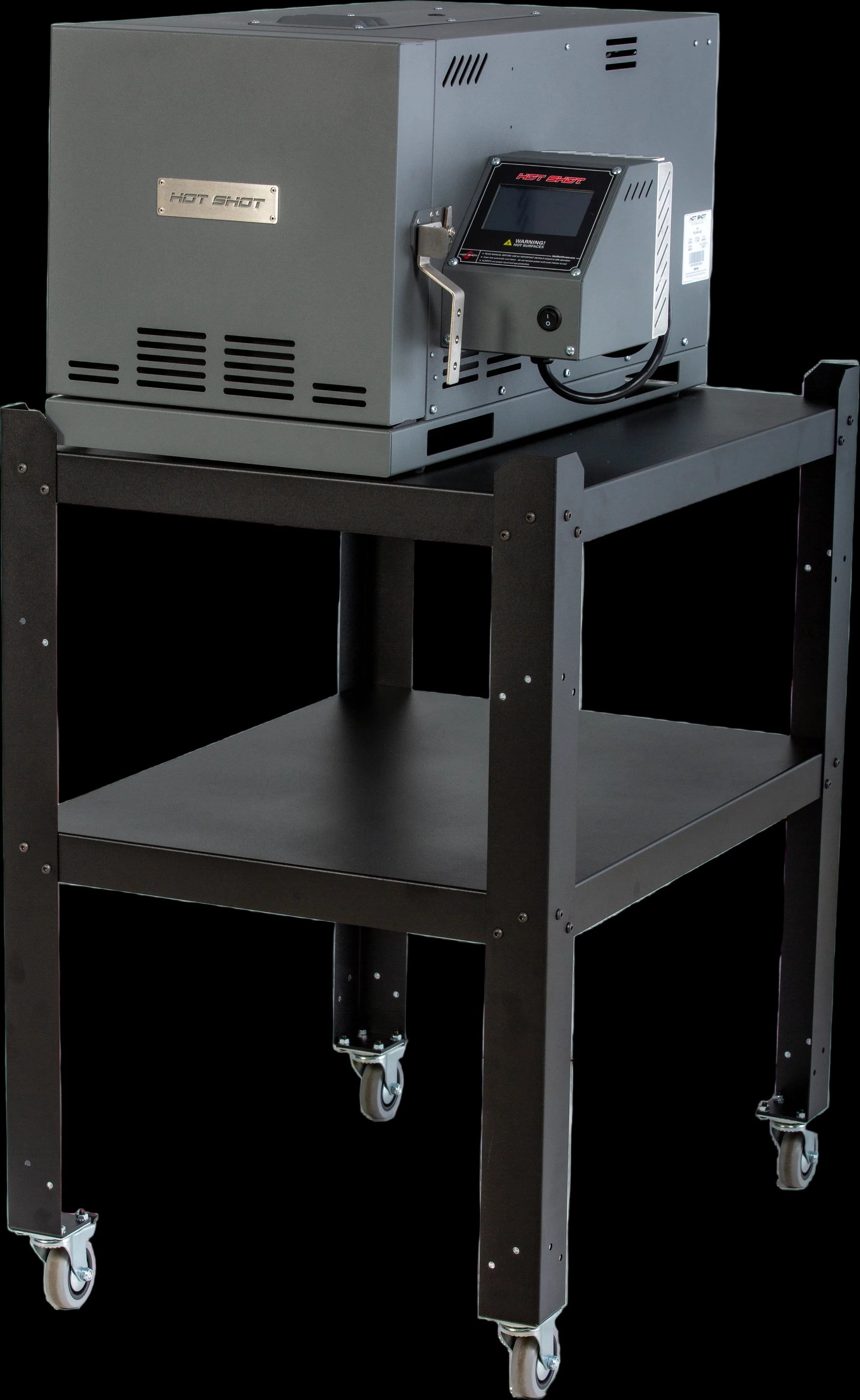

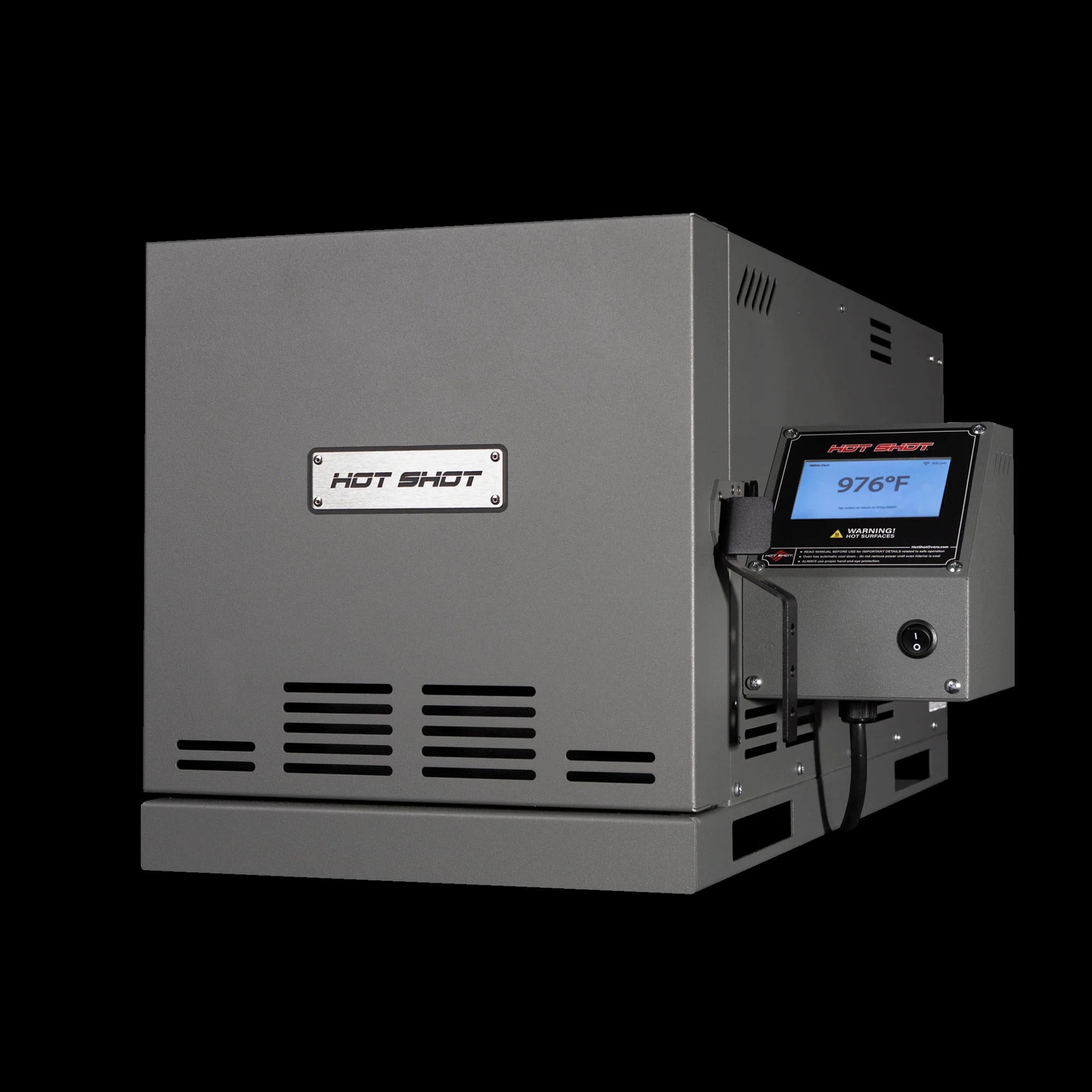

The Hot Shot 24K has been designed with the help of blacksmiths and knife makers to bring you the highest quality oven on the market. With a max temp of 2200°F, this is perfect for heat treating any knife metal. This is truly a gem that can be used in even the smallest of shops and includes Hot Shot’s cool-to-touch technology, setting the bar for safety in the oven and kiln industry. Built in the USA using the highest quality components, we are excited to offer an oven that can be used anywhere by anyone.
| Model: | Hot Shot Oven and Kiln – Knife Makers Kiln HS-24K |
| Dimensions Inside: | 24" (length) × 8" (width) × 7" (height) |
| Dimensions Outside: | 33" (length) × 21" (width) × 17" (height) |
| Elements: | Side Elements |
| Max Temp: | 2200°F |
| Voltage: | 240 volts |
| Amperage: | 17 amps (Requires 20 amp breaker) |
| Receptacle: | NEMA 6-20R |
| Shipping Weight: | 105# (Motor Freight) |
SHIPS IN 1-2 BUSINESS DAYS!
Cool Touch Technology
Hot Shot Oven & Kilns are equipped with Cool-Touch Technology that provides a safe external temperature for safer operation and protection of surroundings. Each oven includes a removable high-density fiber kiln floor. Built with a high-quality 304 stainless-steel core and fan-cooled external powder-coated enclosure featuring a dual-layer air plenum for precise temperature control.

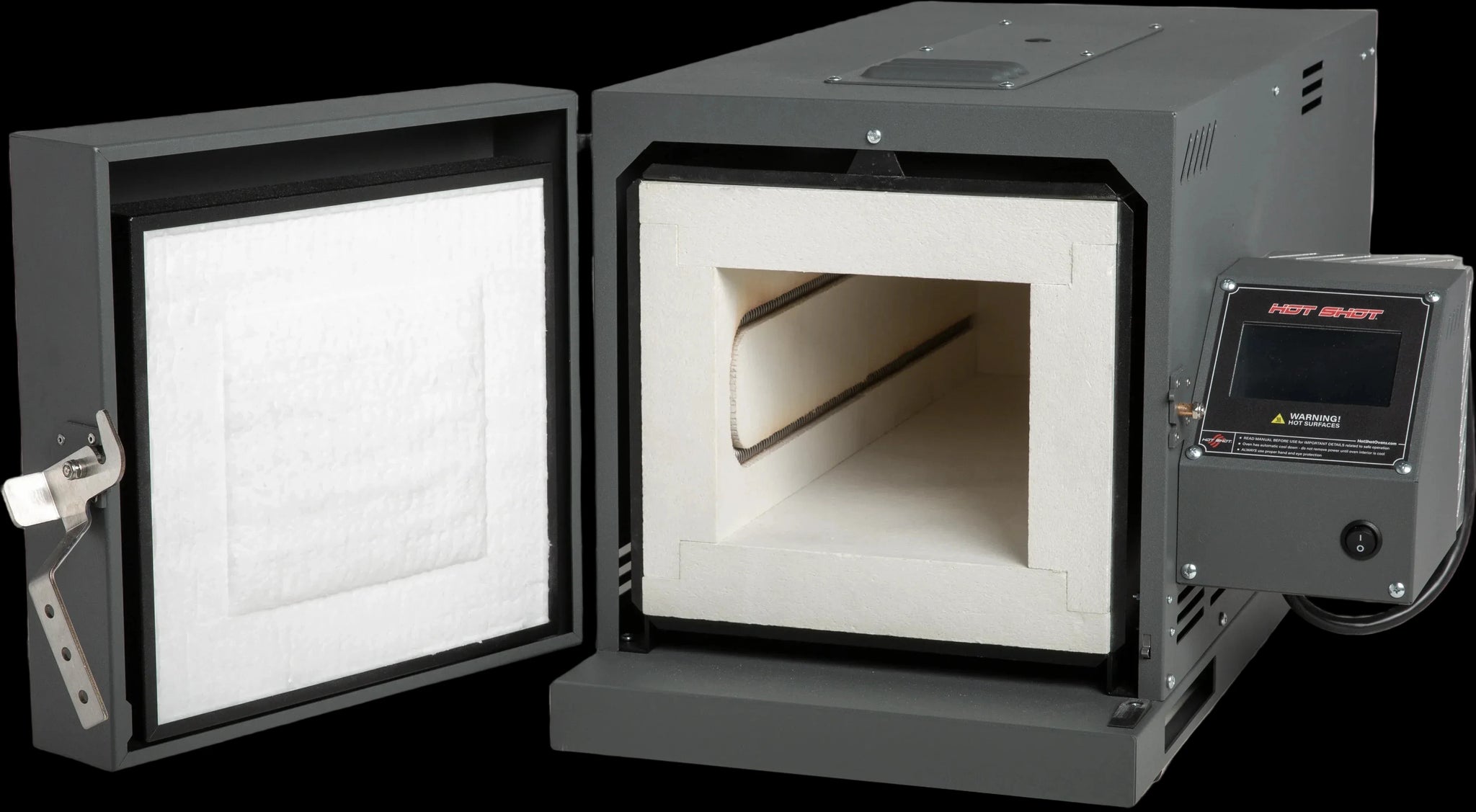

Side Opening Fiber Lined Door with Cool Touch Handle
Designed for easy one-handed access when removing hot material. The door opens fully out of the way and the Cool-Touch handle is made from high-quality stainless steel for safety.

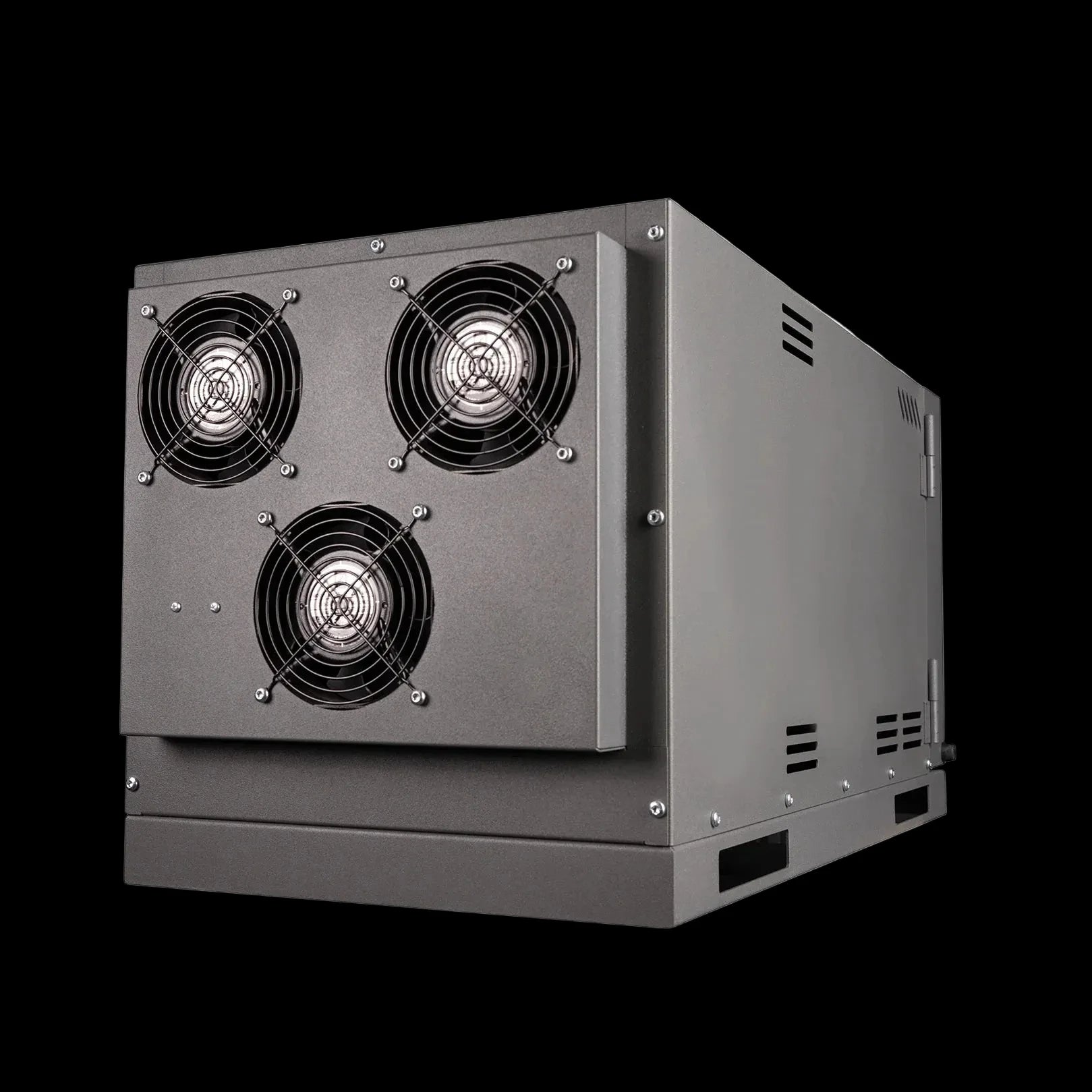

Cooling Fan
Standard rear-vented cooling fan turns on automatically during operation and keeps the outer surface within approximately 68°F of room temperature. Maintain at least 3 inches of clearance from walls or obstructions.
Solid State Relays (Standard)
Quiet, reliable solid-state relays eliminate the clicking of mechanical relays and deliver better temperature regulation and longer life expectancy.
Precision Construction
High-efficiency technology reaches 2200°F using a Type K thermocouple and 16AWG Kanthal A-1 heating elements. Each piece of insulation is precision-machined for a perfect fit so temperature stays stable with minimal fluctuation.

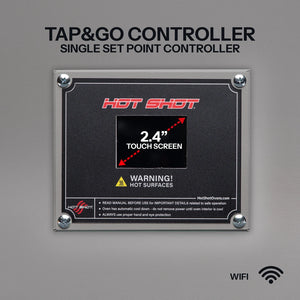

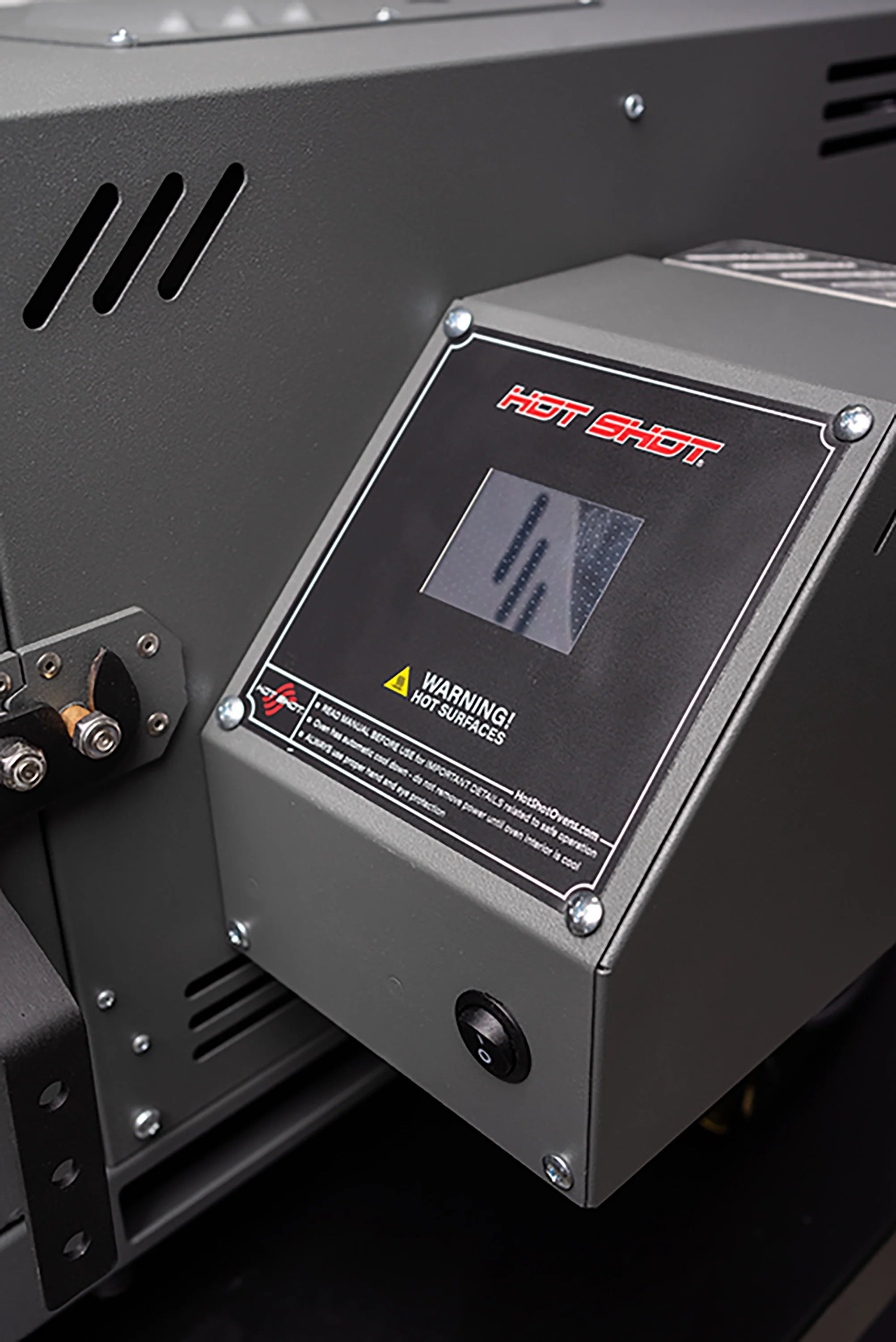

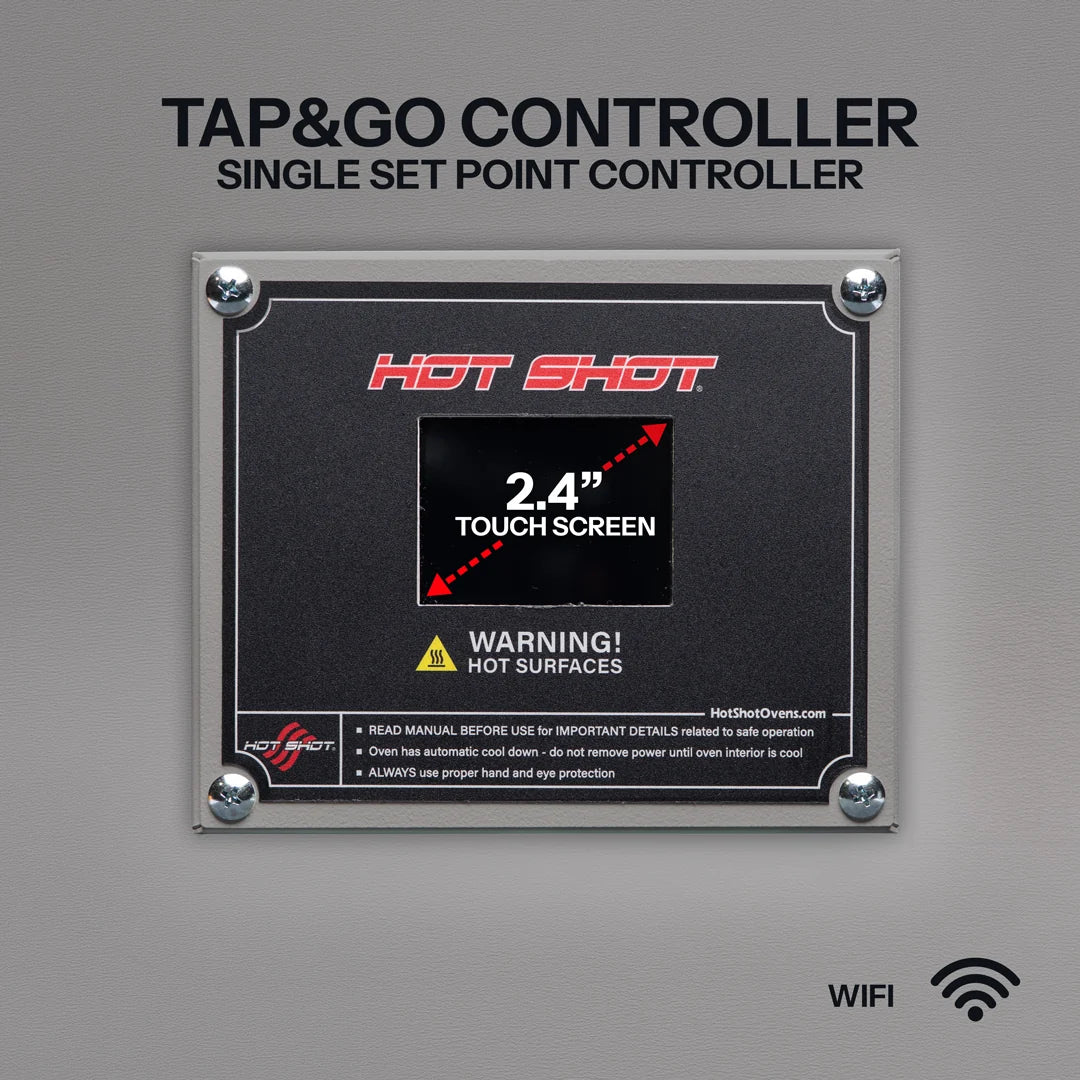

TAP&GO Controller (Included)
Simple single-setpoint controller designed for heat treating and knife making. Enter the temperature you want and the controller does the rest.

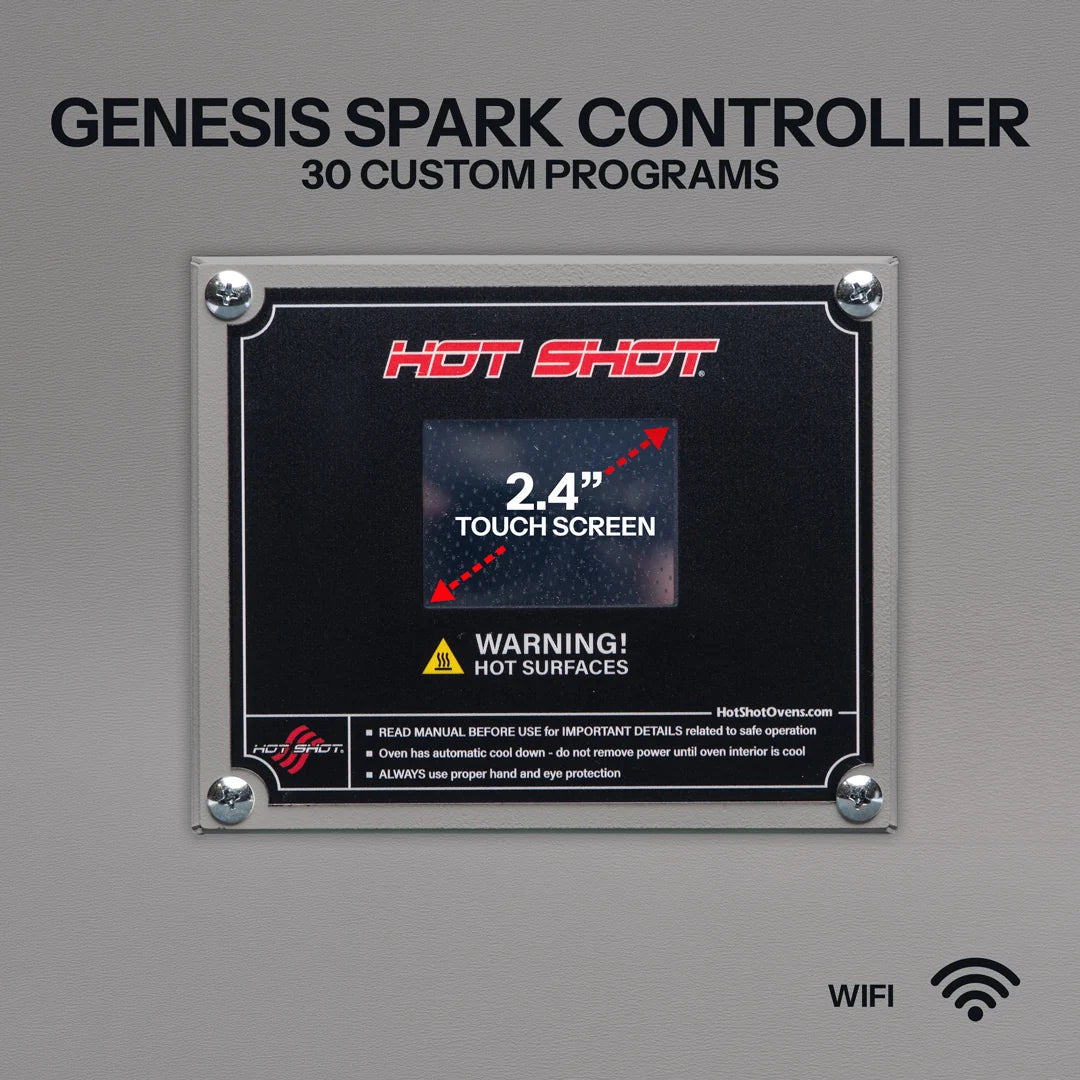

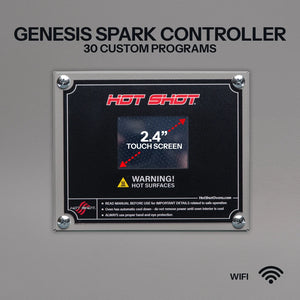

Upgrade to Bartlett Genesis Spark
Full-color touchscreen with up to 30 custom programs (32 segments each), real-time adjustments, graphical process displays, built-in diagnostics, end-of-firing alarm, and Wi-Fi for software updates and remote monitoring.

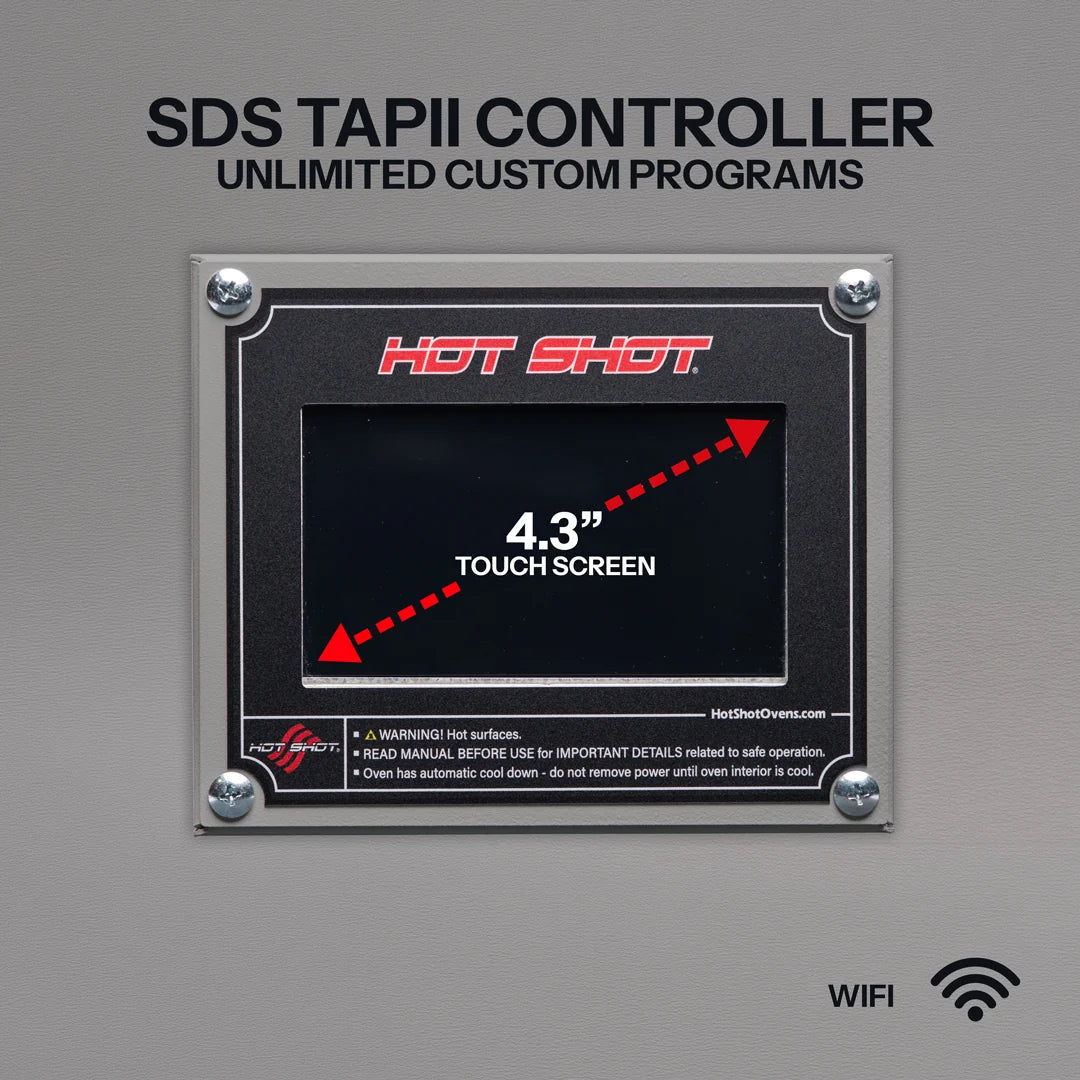

Upgrade to TAP Controller (SDS Industries)
The most advanced consumer kiln controller available. Intuitive full-color touchscreen, unlimited programs, detailed firing logs, push notifications, maintenance tracking, and Wi-Fi connectivity (2.4 GHz only). Includes Wi-Fi dongle.
All units include a programmable alarm and a safety door switch that de-energizes the heating elements when the door is opened.
Oven and controller manuals are available on request. A 29-page Common Heat Treating Recipes booklet covering popular knife steels is also available.
